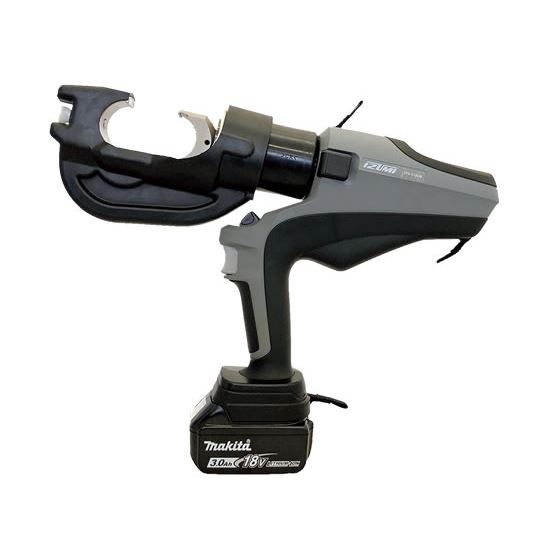

IZUMI泉精器充电式压接钳S7G-510LM青岛平山郭15854210565
产品详情
IZUMI泉精器充电式压接钳S7G-510LM青岛平山郭15854210565
IZUMI泉精器充电式压接钳S7G-510LM青岛平山郭15854210565
IZUMI泉精器充电式压接钳S7G-510LM青岛平山郭15854210565
Optional accessories
Hexagonal Dies for 12 ton Crimping Tools
12 ton U-type dies
Copper, Aluminum Terminals
Suitable for DIN46235
12 ton U-type dies
Copper, Aluminum Terminals
Suitable for DIN46235
| Die No. | Range | A | B | C |
| K6 | Cu 10 | 6.2 | 2.0 | 12.0 |
| K8 | Cu 16 | 8.2 | 3.0 | 12.0 |
| K10 | Cu 25 Al 16 | 9.7 | 3.6 | 12.0 |
| K12 | Cu 35 Al 25 | 11.8 | 4.4 | 14.0 |
| K14 | Cu 50 Al 35 | 13.8 | 5.3 | 14.0 |
| K16 | Cu 70 Al 50 | 15.8 | 6.0 | 14.0 |
| K18 | Cu 95 Al 70 | 18.0 | 7.0 | 14.0 |
| K20 | Cu 120 Al 95 | 19.8 | 7.6 | 14.0 |
| K22 | Cu 150 Al 120 | 22.3 | 8.7 | 13.0 |
| K25 | Cu 185 Al 150 | 24.3 | 9.6 | 12.0 |
| K28 | Cu 240 Al 185 | 27.8 | 11.5 | 11.0 |
| K32 | Cu 300 Al 240 | 31.5 | 13.6 | 9.0 |
| K34 | Cu 400 Al 300 | 33.7 | 14.5 | 7.0 |
| (mm²) | (mm) | (mm) | (mm) |
¥1850.00

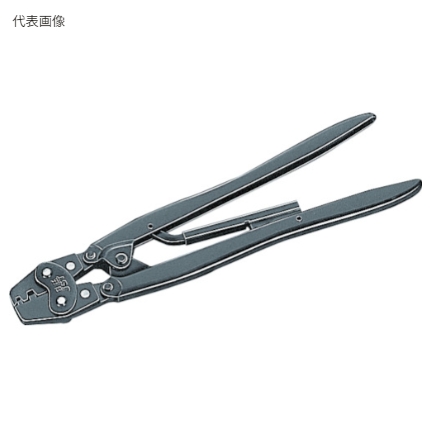

JST日压手动式压接钳YC-520青岛平山郭15854210565¥3600.00
