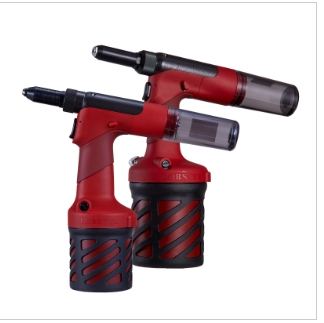

日本LOBSTER虾牌气动铆钉枪R2A1青岛平山郭15854210565
产品详情
日本LOBSTER虾牌气动铆钉枪R2A1青岛平山郭15854210565
日本LOBSTER虾牌气动铆钉枪R2A1青岛平山郭15854210565
日本LOBSTER虾牌气动铆钉枪R2A1青岛平山郭15854210565
TECHNICAL DATA
| Model No | Model No. | R2A1 |
| Product weight | 1.25kg ※1 | |
| User range | Φ2.4、Φ3.2、Φ4.0、Φ4.8（All type listed in Lobtex catalog） *Optional support：High-strength rivets NSTB | |
| Stroke | 19mm | |
| Used air pressure | 0.5~0.6MPa | |
| Output | 9.0kN（Traction power at 0.6MPa） | |
| Sound | Pressure level (Lpa) 75dB | |
| Air Consumption | Max. 82 L/min （Suction at 0.6MPa） | |
| JAN Code | 4963202004855 | |
| Package Item | nosepiece（Φ2.4、Φ3.2、Φ4.0、Φ4.8）、guide pipe（Φ2.4、Φ3.2）、Guide Pipe Collar（Φ4.0、Φ4.8） | |
| Model No | Model No. | R2A2 |
| Product weight | 2.0kg ※1 | |
| User range | Φ4.8、Φ6.4（All type listed in Lobtex catalog） *Optional support：High-strength rivets S | |
| Stroke | 25mm | |
| Used air pressure | 0.5~0.6MPa | |
| Output | 18.5kN（Traction power at 0.6MPa） | |
| Sound | Pressure level (Lpa) 80dB | |
| Air Consumption | Max. 105 L/min （Suction at 0.6MPa） | |
| JAN Code | 4963202004862 | |
| Package Item | nosepiece（Φ4.8、Φ6.4） | |
¥643.00

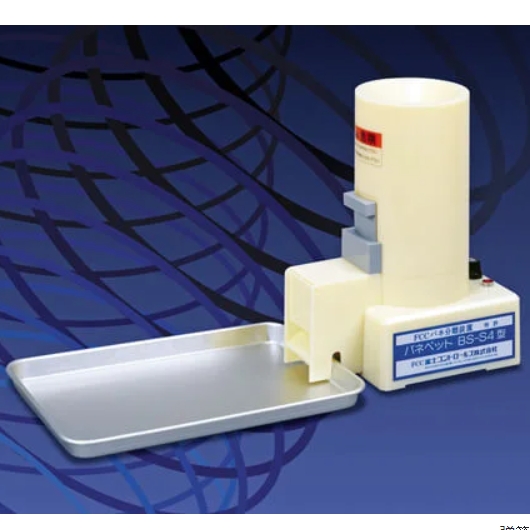

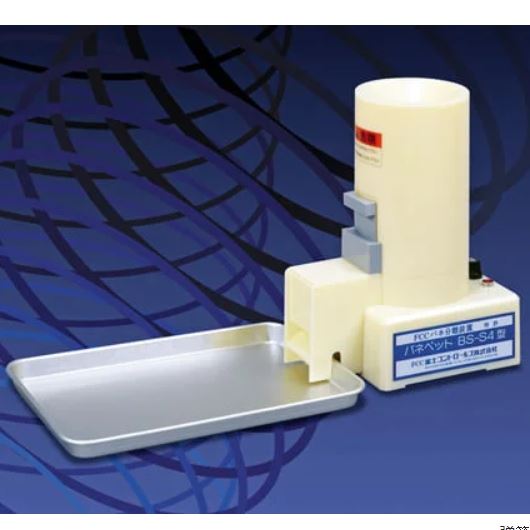

日本FUJICON富士弹簧分离器BS-S4 青岛平山郭15854210565¥6700.00
