computex烧录器编码器FP-40青岛平山郭-158-54210565

货号: #FP-40

库存: 33

品牌:

¥15000.00 ¥6990.00

简介

computex烧录器编码器FP-40青岛平山郭-158-54210565

分类: 工控传动,

产品详情

computex烧录器编码器FP-40青岛平山郭-158-54210565

Main features

One push operation: Just press a button and write to flash memory
Standalone: Program flash memory without a PC
Power efficient and highly portable: Works with a mobile power bank
Super-fast writing: Optimize operation for each device (Speed: ~400KBps)
Straightforward result indication: Indicated with 2 color LEDs and buzzer
Easy status check: Easy-to-read OL display that shows write status and error if any
JTAG/SWD support: Connect to the target board via JTAG/SWD debug interface (UART and LIN is possible as well)
Supports protection/security: Flash memory protection/security processing can be performed during programming
Supply power to the target: Provide power supply to the target. Writing can be performed without connecting a separate target power supply
Wide target support: Compatible with over 4000 devices. Unsupported/custom devices are supported on request
Developed in-house: Completely developed in-house, so you can expect fast and accurate support
Production system incorporation: Incorporate into your automated production systems using the specification provided by us
Supports English and Japanese: Can be used globally in any manufacturing base

Why choose FP-40?

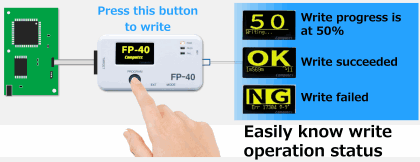

Point 1: Simple to use, straightforward result reporting

One push operation and clear error reporting to prevent careless mistakes
Simply connect FP-40 to the target and press the PROGRAM button to start the write operation.
Write progress, time remaining etc. can be known clearly by glancing at the easy-to-read OL display. The LEDs and buzzer will inform you of the result as well.
Operating procedure and result reporting are clear and simple. This is done with the aim to prevent careless mistakes.

Point 2: Choose from 2 operating modes

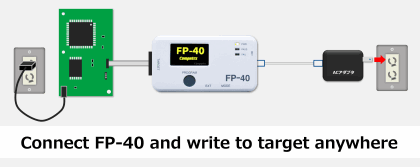

Standalone mode (Use FP-40 independently)
Connect FP-40 to the target and begin the write process. A PC is not required.
※Use the included AC adapter or a power bank to supply power to FP-40.

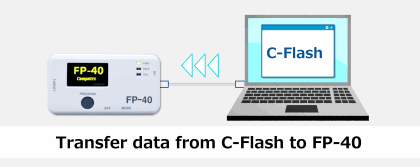

Preparing FP-40 for Standalone mode

Use the proprietary software, C-Flash to prepare FP-40 for standalone use. Target CPU, data to be written, protection/security settings etc. need to be set using C-Flash. Once this is done, a PC is not required and FP-40 can be used in Standalone mode.

Step 1: Connect FP-40 to the PC and start C-Flash
Step 2: Set the target CPU and manufacturer name
Step 3: Transfer data to be written to FP-40

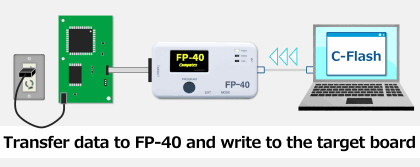

C-Flash mode (Use FP-40 with a PC)
Connect FP-40 to a PC and write to the target.
Different types of flash memory on multiple boards can be programmed efficiently. Write data can be transferred to FP-40 so that it can be used in Standalone mode as well (as explained in the above section).

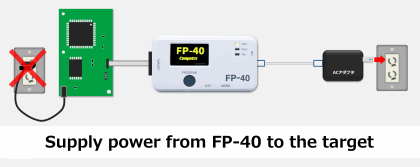

Point 3: Eliminate Target board power supply

Supply power to the board from FP-40 and eliminate the need to connect the target power supply. (Voltage: 3.3V or 5.0V. Max current: 200mA)

Other features

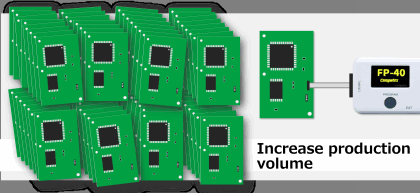

Super fast write

Optimal write settings are used and so write time will be reduced greatly and the target can be programmed quickly (speed: ~400KB/s).
Production time is shortened, leading to reduced production cost.
