SHOWA正和小型润滑油泵注油机MV-10101-F青岛平山郭-158-54210565
SHOWA正和小型润滑油泵注油机MV-10101-F青岛平山郭-158-54210565
SHOWA正和小型润滑油泵注油机MV-10101-F青岛平山郭-158-54210565
SHOWA正和小型润滑油泵注油机MV-10101-F青岛平山郭-158-54210565
Delivers small amounts of oil continuously
・2 discharge volumes available, dispensing either 1.7c㎥/cy or 3.5c㎥/cy
Can be connected to the target machine’s timer system (control board) for extra operational control.
The MV motorized pump units are designed to continuously lubricate within a resistance type system. Unit can be supplied with a 2 liter aluminum or plastic tank.
Optional attachments are also available, including a needle valve and a float switch.
Specifications
| MODEL CODE | Discharge Vol. (c㎥/min) | Motor Rotation(rpm) | Max. Discharge Pressure (MPa) | Tank Capacity | |
| 50Hz | 60Hz | ||||
| MV1 | 1.7 | 2.0 | 5 | 0.5 | 2L (1.5L effective) |
| MV3 | 3.5 | 4.2 | 10 | ||
※A needle valve and a float switch can be attached to the unit, slightly altering the specifications.
※Flow-rate can be adjusted on models fitted with the needle valve option.
Drawing
¥1321.00

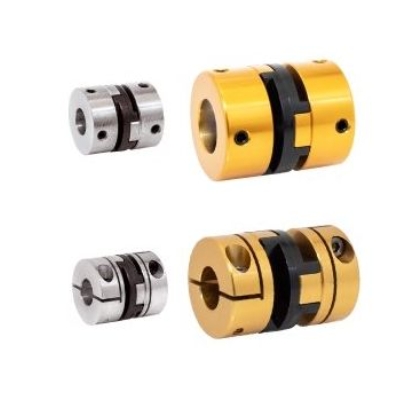

日本MIGHTY联轴器MJC-50-20X25青岛平山郭-158-54210565¥1329.00
