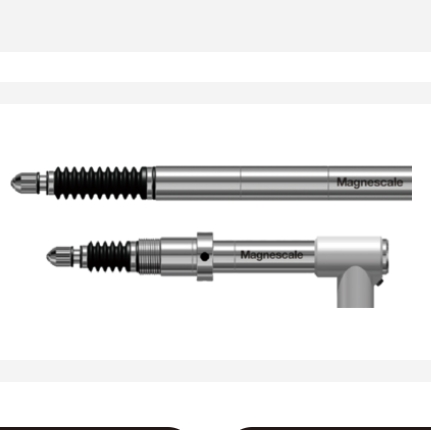

Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing.
Our unique signal processing technology enables measurements that require high accuracy and real-time performance.

• Measuring range: 5 mm, 12 mm, 30 mm

• Maximum resolution: 0.1 µm, 0.5 μm

• Accuracy: 1 µm p-p to 1.7 µm p-p (Depends on the model)

• Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm)

• Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings

• High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)

• Protection grade: IP67 (straight type / right angle type with air tube)

• Built-in reference point

• Output signal: A/B/reference point (Voltage-differential line driver output)

• Flange type is also available for strong fixing.
