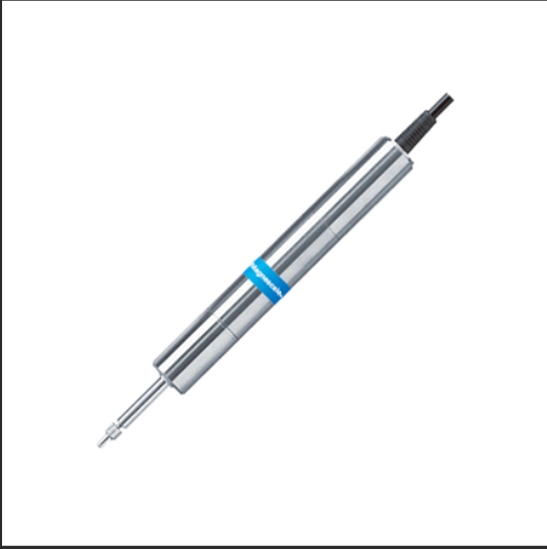

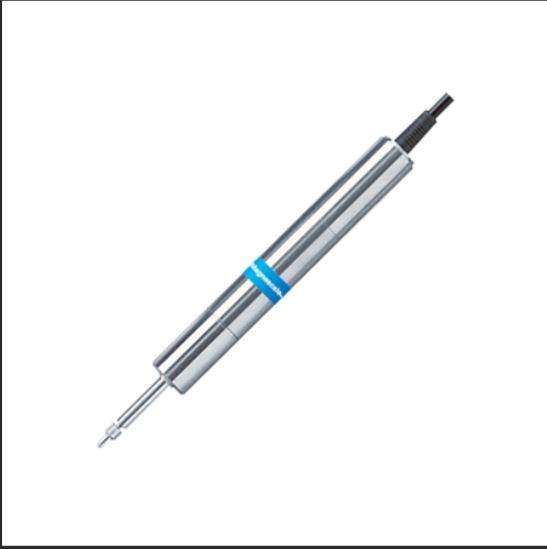

MAGNESCALE索尼传感器DK25PR5青岛平山郭15854210565
MAGNESCALE索尼传感器DK25PR5青岛平山郭15854210565
MAGNESCALE索尼传感器DK25PR5青岛平山郭15854210565
MAGNESCALE索尼传感器DK25PR5青岛平山郭15854210565
Measuring range : 10 mmm, 25 mm, 50 mm, 100 mm, 155 mm, 205 mm
Maximum Resolution : 0.5 μm
Accuracy : 2 μm p-p to 6 μm p-p (depends on the model)
Dustproof, dripproof, and oilproof construction. Good environmental resistance. (P type)
High measuring force (DK10/25/50/100P type) : 4.9 N to 9.3 N (depends on the model)
Low measuring force (DK10/25/50/100N type) : 0.3 N to 2.7 N (depends on the model)
Measurement can be performed by adsorbing it to the moving table with the attached magnetic adsorption type feeler (DK155/205).
Built-in reference point
Output signal: A/B/reference point (voltage-differential line driver output)
