日本KABUTO高精度车床顶针顶尖KC-4青岛平山郭-158-54210565

五金工具类日本KABUTO高精度车床顶针顶尖KC-4青岛平山郭-158-54210565

货号: #KC-4

库存: 35

品牌:

¥4820.00 ¥2510.00

日本KABUTO高精度车床顶针顶尖KC-4青岛平山郭-158-54210565

分类: 五金工具类,

产品详情

日本KABUTO高精度车床顶针顶尖KC-4青岛平山郭-158-54210565

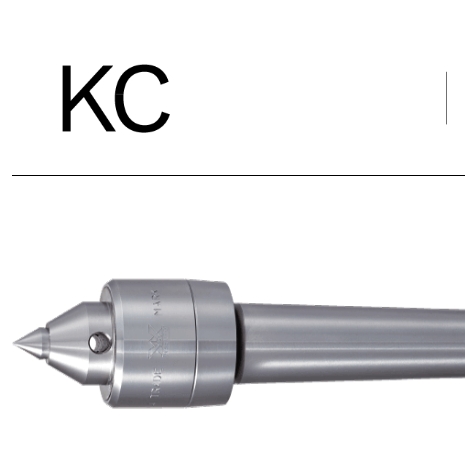

See page HEAD LIST for center head types.
See page ALLOWABLE LOAD & MORSE TAPAR for revolutions per minute.
Type KC is not waterproof.
Type KC comes with the center head A and then the center head ejecting drift DHN-1
(KC-5 come with the center head 5A60° and DHN-2).

DIMENSIONS TABLE

(UNIT mm)

MODEL TYPE	M.T.	φD	φd	φh	A	B	C	E	F	L	HEAD TYPE	WEIGHT (g)	HEAD ANGLE
KC-2	No.2	35	27	15.5	36.2	32	68	4	22.5	136.2	REPLACEMENT	510	60°
KC-3	No.3	40	30	16	36.2	37.5	85	4.5	22.5	158.7	REPLACEMENT	780	60°
KC-4	No.4	49.5	32	16	36.2	47	108	5.3	22.5	191.2	REPLACEMENT	1,400	60°
KC-5	No.5	68	52	26	60.5	57	136	6.3	38	253.5	REPLACEMENT	3,600	60°
