货号: #LH72-3

库存: 29

品牌:

¥11400.00 ¥6120.00

简介

Magnescale索尼数字信号显示器LH72-3车床数显表青岛平山郭-158-54210565

分类: 仪器仪表类,

产品详情

Magnescale索尼数字信号显示器LH72-3车床数显表青岛平山郭-158-54210565

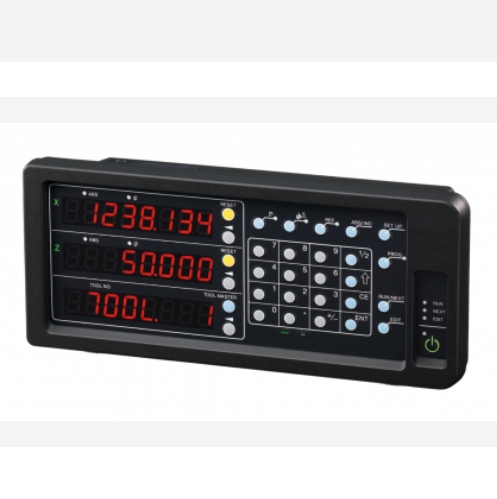

High performance Lathe specific counter.

Counter for Lathe (LH72-3)
Display Resolution Switching
Machine error compensation
Data Storage
Reset/Preset
Detecting Reference Point of Measurement Unit
Program function
Scaling
Lathe function (Tool coordinating / Adding function)

Specifications

Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model	LH72
Display	7 digits and minus display
Connectable measuring unit	GB-ER, PL20C (Direct) / DG-B (Necessary to use the conversion adaptor which is sold separately)
Measuring unit input resolution	Standard: 0.1 µm, 0.5 µm, 1 µm, 5 µm, 10 µm, 1 s, 10 s, 1 min, 10 min Expanded: 100 µm, 50 µm, 25 µm, 20 µm, 2 µm, 0.05 µm, 1 degree can be added
Display resolution	Measuring unit input resolution or higher and diameter display (except for angle display)
Input signal	A/B quadrature, Z phase (Conforms to EIA-422)
Minimum input phase difference	100 ns
Quantization error	±1 count
AlarmDisplay	Measuring unit disconnected, Excess speed, Maximum display amount exceeded, Power failure, Error in stored data
Reset	Resettable by key switch
Preset	It is possible to store/call 3 kinds of numbers.
Reference point detection	The reference point of the measuring unit can be detected
Data storage	The value displayed before the power was turned off and setting values are stored
Linear compensation	A fixed compensation amount is applied to the measuring unit’s count value. Compensation amount Standard: ±600 µm/m (Expanded: ±1000 µm/m)
Segmented error compensation	The movement range of the measuring unit with a reference point can be divided into amaximum of 32 sections, and error compensation is performed for each of these sections. Compensation amount: ±600 µm (at each section)
Scaling	Scaling factor:0.100000 ～ 9.999999
Program	Machining coordinates can be programmed (number of program steps: 850 max.) 1. Manual programming by key switch 2. Automatic programming by playback 3. Mirror image during program execution 4. A canned cycle (bolt hole
Angle display	Can be displayed as an angle value when the Digiruler is pasted to the arc surface
Sleep	The display is turned off when no operations are made for a preset time. (The time can be set.)
Display	2-axis display (2-axis or 3-axis input)
Tool offset	99
Measuring unit input addition2	2-axis addition display is available
Display hold	The displayed value can be held and the tool coordinate entered.
Power supply	DC 12 V Rating 0.75 A Max. 1 A AC 100 V to 240 V ±10 % When using the AC adaptor PSC-22A (For U.S. only) or PSC-23A (For Europe and other countries) *Option
Power consumption	max.32 VA (connected at the AC adaptor.)
Operating temperature	0 ～ 40°C (non condensing)
Storage temperature	-20 ～ 60°C (non condensing)
Mass	Approx. 1.5 kg
