Features:

• Multi functional level, protractor and inclinometer.

• Measures full 360º, 0º to 90º in each quadrant, with standard counter clockwise rotation.

• Large clear LCD display instantly shows level, true vertical and any angle between.

• Additional features include a hold button freeze for convenient out of sight measurements, a v-groove on the top plate for accurate registration on curved or cylindrical surfaces and tapped No, 6 -32 holes in base for plate for special mountings.

• Reset plus Superset self calibration modes.

• Uses standard 9V alkaline battery (included).

• Plastic case included.

• Easy to read LCD display.

• Maximum accuracy of +/- 0.05° and maximum resolution of 0.01°

• Precision, machined aluminum frame.

• Unit can be recalibrated to factory accuracy in the field without special tools or fixtures.

• RS-232 compatible interface for computer data collection.

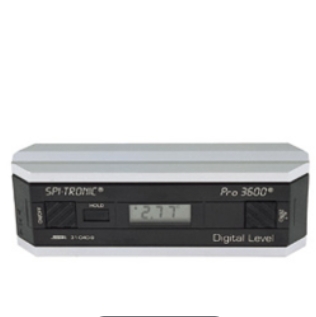

The PRO 3600 Digital Protractor from SmartTool Technologies is a revolutionary measuring tool that provides an immediate, digital reading of all angles in a 360º range. The unit utilizes a patented, liquid-filled sensor combined with precision measurement circuitry to provide unparalleled accuracy and stability.

A precision machined aluminum frame provides a rigid, lightweight, ultra-precise platform for extremely accurate measurements. The frame is grooved along the bottom surface to facilitate use with round objects such as pipes or shafts and incorporates threaded holes on the bottom for rigid attachment if desired.

The front panel buttons can be used to capture desired readings or to designate an alternate reference surface from which subsequent angles are then measured. The unit can also be easily recalibrated in the field to factory accuracy using any available flat surface.

The PRO 3600 features an RS-232 compatible serial interface for transmission of angle measurement data to a computer or other equipment. The unit operates for up to 500 hours on a single 9V battery, incorporates an automatic power down feature, and ships standard with a rigid plastic case.

Additional information about interfacing to the PRO 3600 Digital Protractor is available in Application Note AN-202: Interfacing to a PRO 3600 Digital Protractor, available on the web or from STT upon request.

Electrical Specifications:
