HOWA昭和技研旋转接头AC32A15ARH 青岛平山郭15854210565

货号: #AC32A15ARH

库存: 22

品牌:

¥7925.00 ¥3720.00

分类: 五金工具类,

产品详情

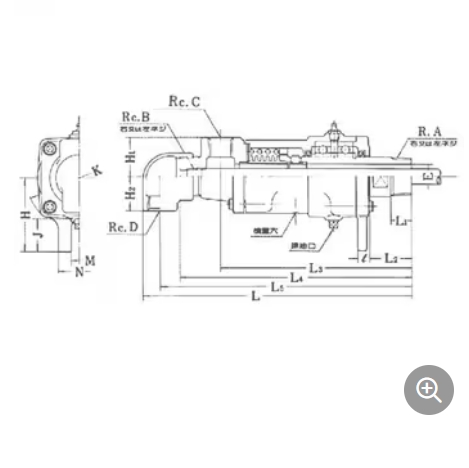

HOWA昭和技研旋转接头AC32A15ARH 青岛平山郭15854210565

它可以交替用于加热和冷却。
它的磨损较少，长期保持出色的性能。
在高温和高压下，高速旋转是可能的。

Types	Fixed Duplex Inner Tube	Compatible Fluid	Water / Air / Steam / Oil
Maximum Operating Temperature(°C)	180	Maximum Operating Pressure(MPa)	1.47
Maximum Rotational Speed(rpm)	300	Connection Type	Screw Mounting Type
Types of Connection Screw for Elbow Side (Composite)	Rc	Types of Connection Screw for Head Side (Composite)	Rc
Type of Connection Thread for Rotor Side (Composite)	R	Nominal Connection Screw for Elbow Side (Composite)	1B(25A)
Nominal Connection Screw for Head Side (Composite)	1B(25A)	Mounting Screw Direction	RH (Right Screw)
