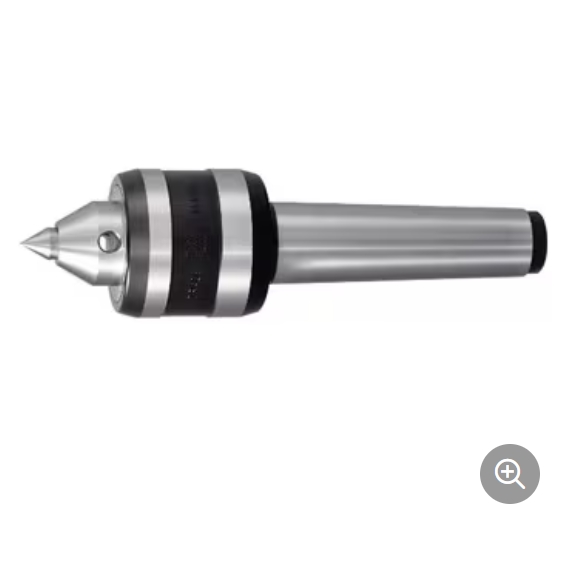

KABUTO内置车床顶尖顶针KS-3P青岛平山郭15854210565
产品详情
KABUTO内置车床顶尖顶针KS-3P青岛平山郭15854210565
KABUTO内置车床顶尖顶针KS-3P青岛平山郭15854210565
KABUTO内置车床顶尖顶针KS-3P青岛平山郭15854210565
See page HEAD LIST for center head types.
See page ALLOWABLE LOAD & MORSE TAPAR for revolutions per minute.
The difference between types S and P is their waggle accuracy.
We recommend that type KFL be used for fine machining or light metal working.
Types S and P have the same dimensions.
Type KS comes with the center head A and then the center head ejecting drift DHN-1
(KS-5S and P come with the center head 5A60° and DHN-2).
DIMENSIONS TABLE
(UNIT mm)
| MODEL TYPE | M.T. | φD | φd | φh | A | B | C | E | F | L | HEAD TYPE | WEIGHT (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KS-2Sor2P | No.2 | 37 | 27 | 15.5 | 36.2 | 30 | 68 | 4 | 22.5 | 134.2 | REPLACEMENT | 500 |
| KS-3Sor3P | No.3 | 44 | 30 | 16 | 36.2 | 42 | 85 | 4.5 | 22.5 | 163.2 | REPLACEMENT | 860 |
| KS-4Sor4P | No.4 | 56 | 32 | 16 | 36.2 | 54 | 108 | 5.3 | 22.5 | 198.2 | REPLACEMENT | 1,700 |
| KS-5Sor5P | No.5 | 73 | 52 | 26 | 60.5 | 66 | 136 | 6.3 | 38 | 262.5 | REPLACEMENT | 3,900 |
¥754.00

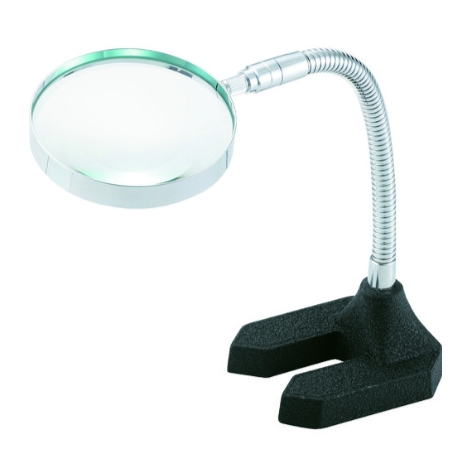

TRUSCO中山站立式放大镜TL-SLF青岛平山郭15854210565¥1410.00
